Premium lithium-ion battery is a Lithium Iron Phosphate rechargeable battery. The unique combination of state-of-the art technology and smart software makes this Li-ion battery a robust, safe and easy to use energy storage solution.
Compared to conventional lead acid batteries, Premium lithium-ion battery saves up to 70 % in space and weight. It offers fast charging, is very efficient, has extremely high performance and is maintenance free.
Moreover, Premium lithium-ion battery uses exceptionally safe lithium iron phosphate (LiFePO4) technology. With its integrated battery management system the Li-ion battery is protected from deep discharging, overcharging and overheating. Eliminating the need for an external safety relay means the Li-ion battery is very easy to install.
Premium lithium-ion battery also has integrated battery monitoring which provides details about its status such as voltage, current, temperature, state of charge and time remaining. Hands-on monitoring is possible via Bluetooth, external monitoring devices and LED indicators inform you about the actual status of your Li-ion battery.
Potential applications of this Li-ion battery include: Recreation vehicles service battery, marine service battery, energy storage solutions.
DESCRIPTION
• High power density, only 13.6 kg
• 12 V 100 Ah, Li Fe PO4
• Can be discharged up to 100%
• >2000 cycles at average use
• Perfect for 12 VDC systems
TECHNICAL SPECIFICATIONS
• Height (mm) : 212 mm
• Width (mm) : 173 mm
• Weight : 13.6 kg
• Nominal voltage (V) : 12.8 V
• Pulsed discharge current (10 sec) : 120 A
• Usable battery capacity at 20˚C : 100 Ah 1280 Wh
• Temperature range (charging) : 0°C to 45°C
• Temperature range (discharging) : -20°C to + 60°C
• Temperature range (storage) : 0°C to + 40°C

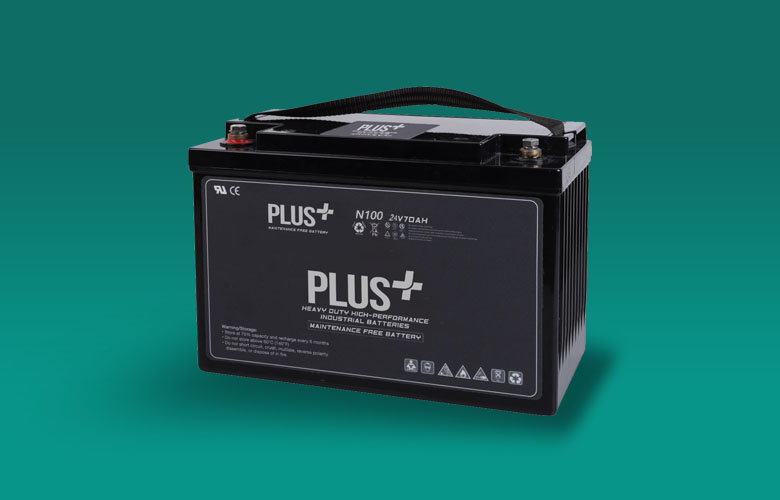

DESCRIPTION
• High power density, only 29.6 kg
• 24 V 100 Ah, Li Fe PO4
• Can be discharged up to 100%
• >2000 cycles at average use
• Perfect for 24 VDC systems
TECHNICAL SPECIFICATIONS
• Height (mm) : 224 mm
• Width (mm) : 240 mm
• Weight : 29.6 kg
• Nominal voltage (V) : 25.6 V
• Maximum voltage : 31.2 V
• End charge voltage : 29.2 VDC +- 0,2 V
• Max charge current 100/c : 100 A
• Max float charge current : 50 A
• Minimum battery voltage : 16 VDC
• Usable battery capacity at 20˚C : 100 Ah / 2560 Wh
• Temperature range (charging) : 0°C to 45°C
• Temperature range (discharging) : -20°C to + 60°C
• Temperature range (storage) : 0°C to + 40°C
DESCRIPTION
• High power density, only 8.1 kg
• 12 V 90 Ah, Li Fe PO4
• Can be discharged up to 100%
• >2000 cycles at average use
• Perfect for 12 VDC systems
TECHNICAL SPECIFICATIONS
• Height (mm) : 200 mm
• Width (mm) : 132 mm
• Weight : 8.12 kg
• Nominal voltage (V) : 12.8 V
• Maximum voltage : 15.6 V
• End charge voltage : 14.6 VDC +- 0.2 V
• Max float charge current : 25 A
• Pulsed discharge current (10 sec) : 60 A
• Usable battery capacity at 20˚C : 50 Ah / 640 Wh
• Temperature range (charging) : 0°C to 45°C
• Temperature range (discharging) : -20°C to + 60°C
• Temperature range (storage) : 0°C to + 40°C
DESCRIPTION
• High power density, only 12.5 kg
• 12 V 90 Ah, Li Fe PO4
• Can be discharged up to 100%
• 5000 cycles at average use
• Perfect for 12 VDC systems
TECHNICAL SPECIFICATIONS
• Height (mm) : 190
• Width (mm) : 175
• Depth (mm) : 353
• Weight : <15kg
• Nominal voltage (V) : 13.2 V
• Maximum voltage : 15.4 VDC
• End charge voltage : 14.6 VDC
• Max charge current 100/c : 100 A
• Max float charge current : 30 A
• Minimum battery voltage : 8 VDC
• Minimum float charge : 10 VDC
• Max discharge current 3/C : 200 A
• Prolonged discharge current (max) : 30 A
• Pulsed discharge current (10 sec) : 600 A
• Pulsed discharge current (60 sec) : 400 A
• Usable battery capacity at 20˚C : 90 Ah / 1200 Wh
• Usable battery capacity at - 20 ˚C : 65 Ah / 858 Wh
• Usable capacity / in comparison to lead acid battery : 160 Ah
• Charge method : CCCV (Constant voltage)
• Temperature range (charging) : 0°C to 45°C
• Temperature range (discharging) : -20°C to +60°C
• Temperature range (storage) : -20°C to +60°C
